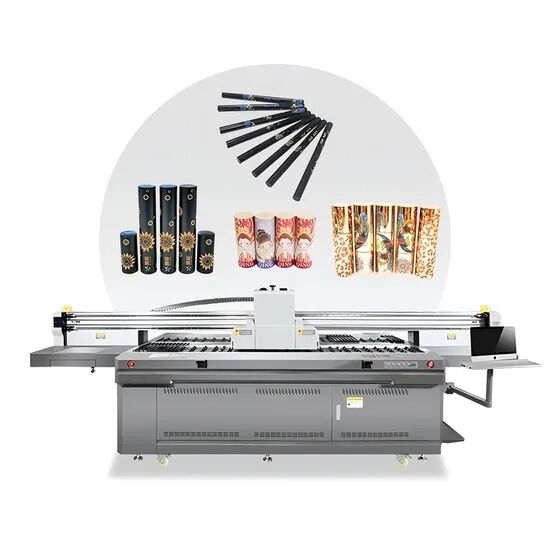

Cylindrical 360 Degree LED Bottle Cylinder UV Printer
Product Overview
Advanced cylindrical UV printing system designed for high-quality 360-degree printing on bottles and cylindrical objects with precision LED curing technology.
Key Features
-
High Precision: 3.5pl droplet size provides optimal balance between throughput and print quality, suitable for diverse applications.
-
High Resolution: Multiple inkjet schemes adapt to different printing materials with accurate colors, distinct layers, and smooth transitions.
-
Intelligent Maintenance: Automatic nozzle flashing and moisture retention during non-working states prevents blockage from ink curing.
Technical Specifications - Model CF-2510 (Duplex)
| Specification |
Details |
| Nozzle Selection |
Ricoh GEN 5i |
| Print Size |
235cm × 63.2cm |
| Printing Height |
0-15cm (Customizable height available) |
| Equipment Size |
412cm × 159cm × 144cm |
| Equipment Weight |
860kg |
| Printing Software |
Photoprint / PrintFactory |
| Ink Type |
LED Environmental Protection UV Ink |
| Ink Colors |
W + CMYK + Varnish |
| Maximum Power |
3000W |
| Nozzle Specifications |
Effective orifice: 1280 |
| Ink Drop Volume |
3.5PL |
| Nozzle Length |
27MM |
| Single Nozzle Color |
4 |
| Rated Voltage |
240V 50/60HZ |
Manufacturer Profile
Guangzhou Skydeekenutek Co., Ltd. specializes in distribution and wholesale of UV printers, including single-pass UV printers, UV flatbed printers, UV mesh belt printers, banner printers, and crystal label printers. Our 2500 m² factory is located in Panyu, Guangzhou, Guangdong Province, employing over 10 R&D staff and 150 workers. We maintain ISO certification with strict quality control and production management, supporting OEM and ODM services. With over 10 years of UV printer manufacturing experience, we have received positive feedback from clients worldwide and export to France, Germany, Vietnam, India, and other countries. Our products are certified with CE and RoHS compliance.
Packaging & Shipping
Quality Certifications
Frequently Asked Questions
Q1: Do I need white ink and varnish ink?
White ink enables high-quality graphics on various materials (acrylic boards, backlit films) and serves as a primer for non-white substrates. Varnish enhances print brightness and extends UV ink fade resistance.
Q2: What materials can UV flatbed printers print on?
All flatbed media including PP/PVC boards, KT boards, acrylic, plexiglass, metal, tiles, phone cases, wood boards, and more. UV printing eliminates coating requirements, prevents fading and blistering, and significantly reduces labor hours. Suitable for rigid identification boards, hard cardboard, corrugated boxes, glass, tiles, wood, and furniture applications.
Q3: Which languages does the RIP installation interface support?
Korean, German, French, Finnish, Dutch, Portuguese, Japanese, Spanish, Italian, English, Simplified Chinese, and Traditional Chinese.
Q4: How is the after-sales service?
Our experienced technical team provides comprehensive support, including operational training until full proficiency. International technical assistance and on-site machine testing/repair services are available.
Q5: Regarding printer maintenance
Daily ink purging when starting the printer is recommended. For extended non-use periods (over 10 days), clean the print head with cleaning fluid and maintain nozzle moisture.
Q6: Are you a factory or a foreign trade company?
We are a manufacturing factory, enabling competitive pricing and high-quality service delivery.
