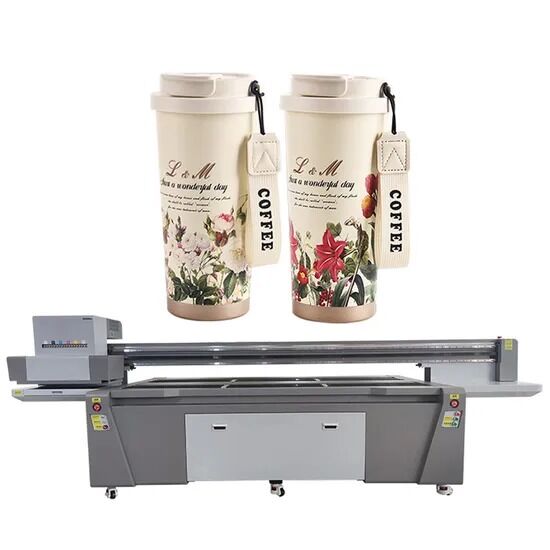

Factory Supplier Cylinder High Speed Digital UV Printer
Product Overview
High-performance digital UV printer designed for industrial applications with exceptional precision and speed at competitive pricing.
Key Features
- High Precision: 3.5pl droplet size provides optimal balance between throughput and print quality for diverse applications
- High Resolution: Multiple inkjet schemes adapt to different printing materials with accurate colors, distinct layers, and smooth transitions
- Intelligent Maintenance: Automatic nozzle flashing and moisture retention during non-working states prevents blockage from ink curing
Technical Specifications
| Equipment Model |
CF-2510 (Duplex) |
| Nozzle Selection |
Ricoh GEN 5i |
| Print Size |
235cm × 63.2cm |
| Printing Height |
0-15cm (Customizable) |
| Equipment Size |
412cm × 159cm × 144cm |
| Equipment Weight |
860kg |
| Printing Software |
Photoprint / PrintFactory |
| Ink Type |
LED Environmental Protection UV Ink |
| Ink Colors |
W + CMYK + Varnish |
| Maximum Power |
3000W |
| Nozzle Specifications |
Effective orifice: 1280 |
| Ink Drop Volume |
3.5PL |
| Nozzle Length |
27MM |
| Single Nozzle Color |
4 |
| Rated Voltage |
240V 50/60HZ |
Manufacturer Profile
Guangzhou Skydeekenutek Co., Ltd. specializes in distribution and wholesale of UV printers, including single-pass UV printers, UV flatbed printers, UV mesh belt printers, banner printers, and crystal label printers.
Our 2500 m² factory in Panyu, Guangzhou employs over 10 R&D staff and 150 workers. We maintain ISO certification with strict quality control and production management. We support OEM and ODM services with over 10 years of UV printer manufacturing experience, receiving positive feedback from clients worldwide.
We export to France, Germany, Vietnam, India, and other countries. All products carry CE and RoHS certification.
Packaging & Shipping
Certifications
Frequently Asked Questions
Q1: Do I need white ink and varnish ink?
A: White ink functionality expands printing capabilities to virtually any media, serving as a primer for non-white materials and enabling high-quality graphics on hard or soft substrates. Varnish enhances print brightness and extends UV ink fade resistance.
Q2: What materials can UV flatbed printers print on?
A: All flatbed media including PP/PVC boards, KT boards, acrylic, plexiglass, metal, tiles, phone cases, and wood boards. UV printing eliminates coating requirements, prevents fading and blistering, and significantly reduces labor hours. Ideal for rigid identification boards, hard cardboard, corrugated boxes, and specialty markets including custom decoration, glass, tiles, wood, and furniture.
Q3: Which languages does the RIP installation interface support?
A: Korean, German, French, Finnish, Dutch, Portuguese, Japanese, Spanish, Italian, English, Simplified Chinese, and Traditional Chinese.
Q4: How is the after-sales service?
A: Our experienced technical team provides comprehensive support, including operational training until full proficiency is achieved. International technical assistance and on-site machine testing/repair services are available.
Q5: Regarding printer maintenance
A: Daily ink pressing is recommended when starting the printer. For extended non-use periods exceeding 10 days, nozzle cleaning with specialized fluid and moisture maintenance is essential.
Q6: Are you a factory or a foreign trade company?
A: We are a manufacturing facility, enabling us to offer competitive pricing and superior service quality.
